Jeep Wrangler 3.6/2.0/6.4L JL Transfer Case Skid Plate (2018+)

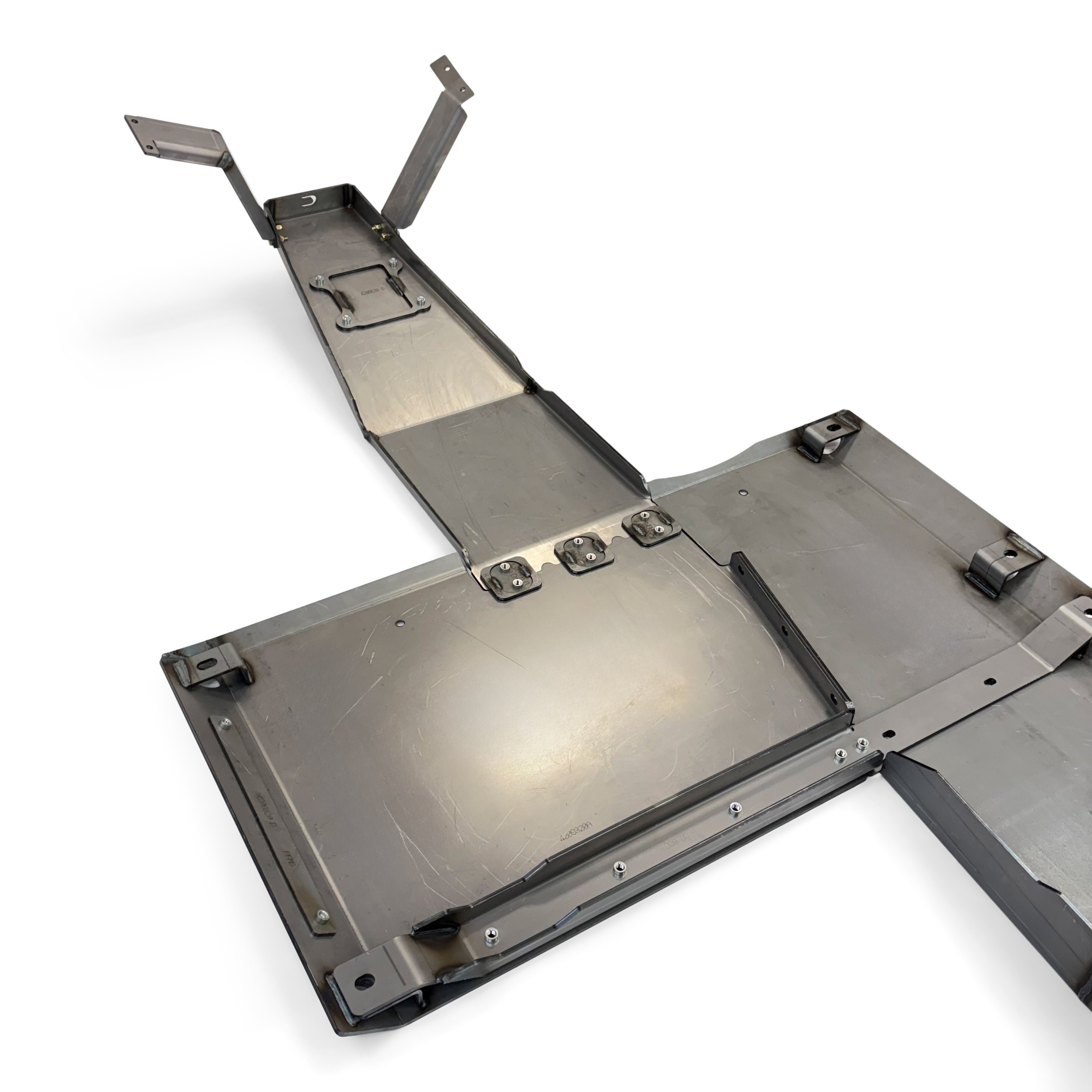

Our JL Transfer Case Skid Plate is the backbone of the underbody protection system, providing full coverage from frame rail to the gas tank with a completely flat skid surface. Built from 1/4 Inch thick steel, it replaces the OEM skid and delivers unmatched strength, clearance, and modular compatibility.

Key Features:

• 1/4 Inch Thick Steel Construction - Maximum strength with minimal clearance loss
• Boat-Side Frame Rail Coverage - Protects frame rail from direct impacts
• Completely Flat Skid Surface - Eliminates hang-up points
• Countersunk Hardware - No exposed bolts on the skid surface
• OEM Replacement Design - Lighter and stronger than bolt-over systems
• Clayton Logo Plate - Includes backing plate for possible color matching and styling.

Fitment & Notes:

• All Items Ship Bare Metal - Painting or Powdercoat will be necessary
• Compatible with short arm and COR long arm suspensions
• Mounts to OEM nut-serts in the frame rail (one drilled hole required)

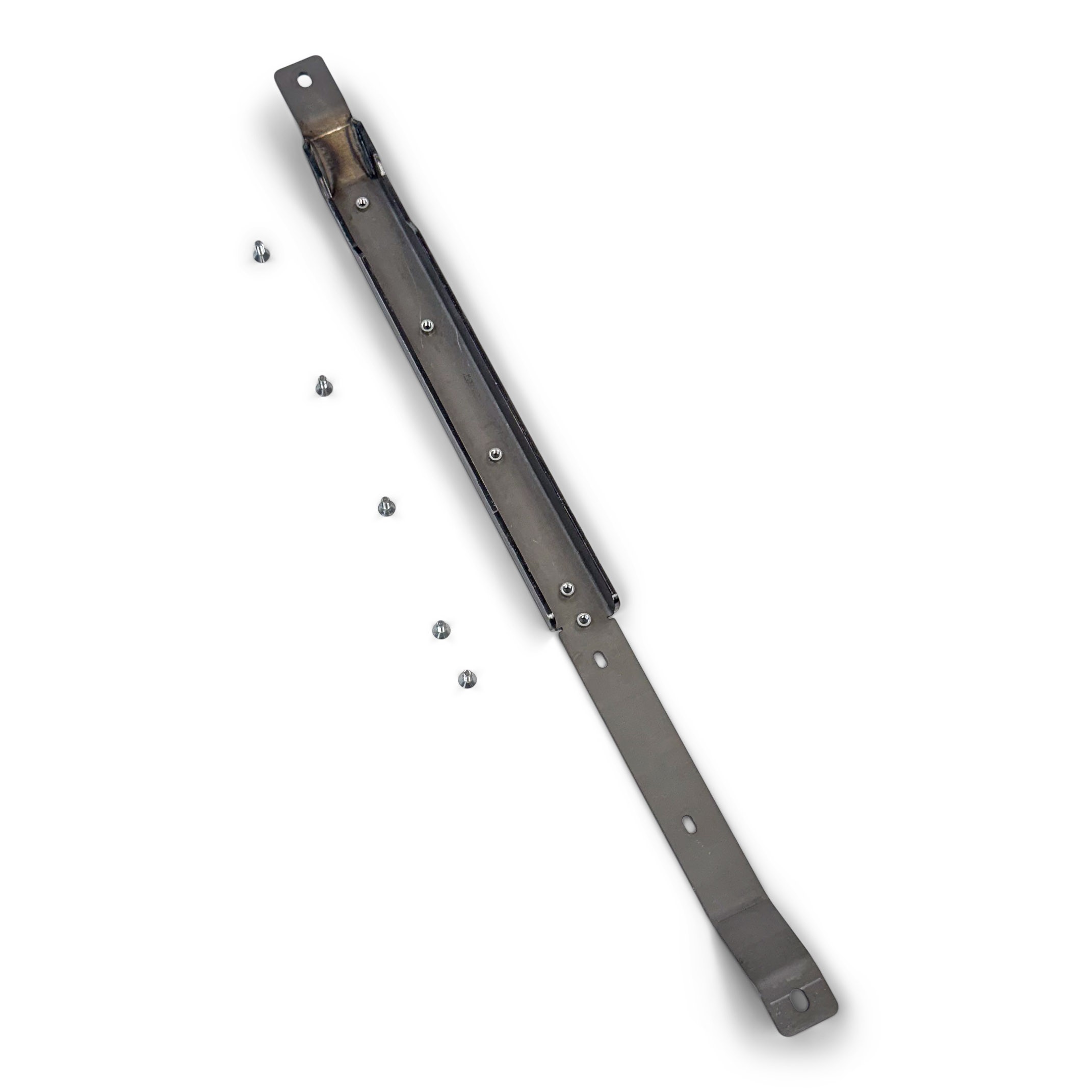

• Includes a Skid Support Member for added rigidity

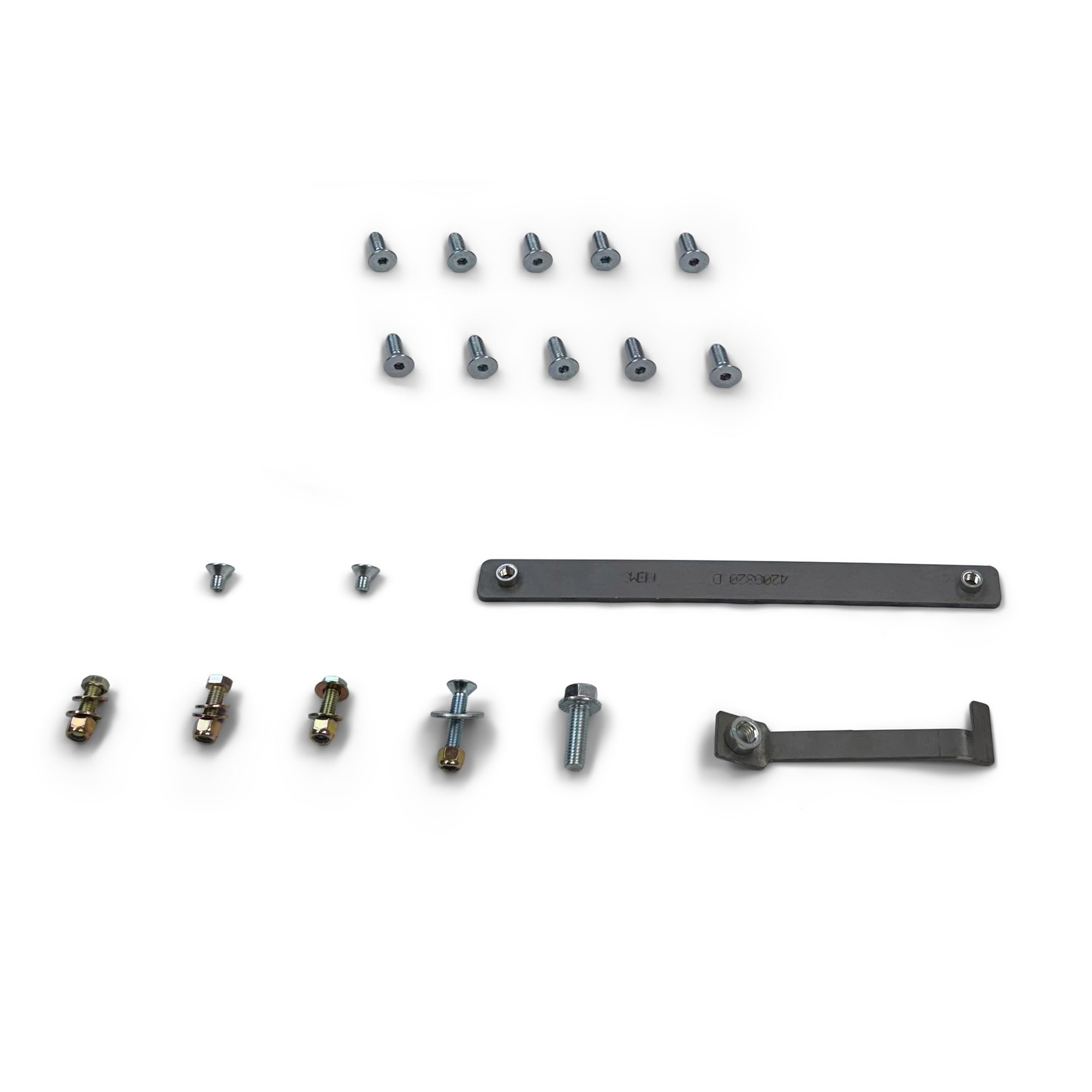

• Includes Cross Member Components to securely fasten the skid to the OEM cross member
• Strongly recommended when running the gas tank skid (not required)

Connection brackets are included with both the Engine Skid Plate and Transfer Case Skid Plate. Since only one set is required per vehicle, customers purchasing both skid plates can remove the duplicate bracket set from one of the products before checkout.

If you already have a set of Clayton connection brackets installed or from a previous skid plate purchase, you may also remove the connection bracket kit before adding this product to your cart.

Note : Please note this item(s) ships out of a box! Cosmetic damage e.g. surface rust or scratches may result during shipping and items would not be considered damaged, or eligible for a return/replacement or compensation. Cosmetic damage will not affect the performance of the actual product, however, If you would like to avoid these minor cosmetic issues please feel free to email us for a freight quote and we can arrange product shipment on a pallet.
