ICON Vehicle Dynamics 2023-2024 Chevrolet Colorado WT, LT, and Z71 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

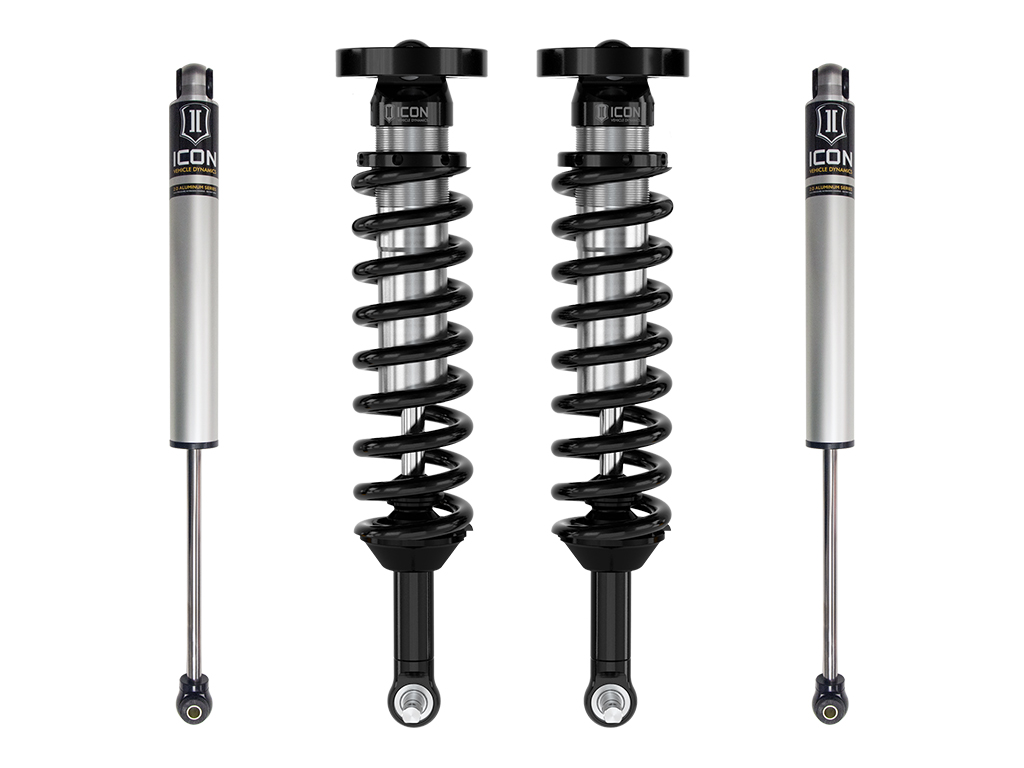

This Stage 1 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers, specifically designed for the narrower track width of these Chevrolet Colorado submodels, are also height adjustable for 1.75-2.5 Inch of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.

Their longer than stock length improves performance by increasing front wheel travel while still being compatible with the stock front upper control arms. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.

The ICON Vehicle Dynamics 2023-2024 Chevrolet Colorado WT, LT, and Z71 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable Coilovers from 1.75-2.5 Inch of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8 Inch polished shafts
• 100 Percent Bolt-on system - no drilling, cutting, or welding necessary for install

• Adjustable Damping: No
• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 2.5 Inch
• Maximum Lift Front: 2.5 Inch
• Minimum Lift Front: 1.75 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
• Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.46 Inch Backspace / 18mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 73031 - 23-25 Chevrolet Colorado/23-25 Gmc Canyon Front Diff Skid Plate, 73032 - 23-25 Chevrolet Colorado/23-25 Gmc Canyon Trans Skid Plate
