Description
The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that's aimed to blend the lines between AAAA ton efficiency and AAAA ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market.

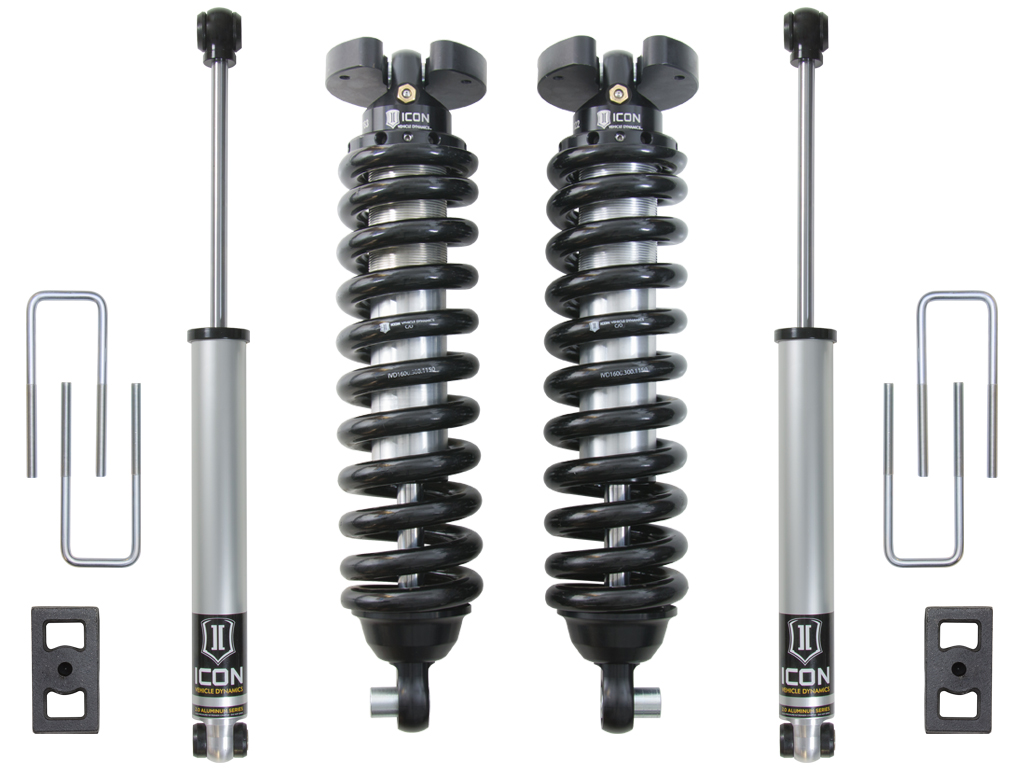

The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none.
The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:- Fits 2WD / 4WD applications
- Increased ride quality over stock with no change in towing capacity
- Approximately 32 Percent increased front wheel travel over stock
- Adjustable coilovers provide 2.5-3 Inch of lift height
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
- Corrosion resistant anodized shock body with 5/8 Inch shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings for extended longevity and minimal deflection
- 100 Percent bolt-on system
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
